Name: ERGO™ Precision Diagonal Cutters with Oval Head
Price: 9999.99 EUR
Availability: InStock

Product Details

Precision oval head diagonal cutters developed according to the scientific ERGO™ process, Oval head
ERGO™ handles with two-component combination, thermoplastic surface, for comfortable grip, on tough polypropylene core for rigidity
Micro-bevel, flush & ultra-cut
The cutting capacity that is given is for copper wire
Cutting capacity: 0.1 mm-0.8 mm to 0.4 mm-2 mm
High performance alloyed steel
Burnished finish
Numerically controlled machine grinding guarantees edge angle accuracy & contact, increases the tool's reliability & consistency
Precision induction-hardened edges 63-65 HRC
Screw joint minimises friction & maximises alignment of cutting edges

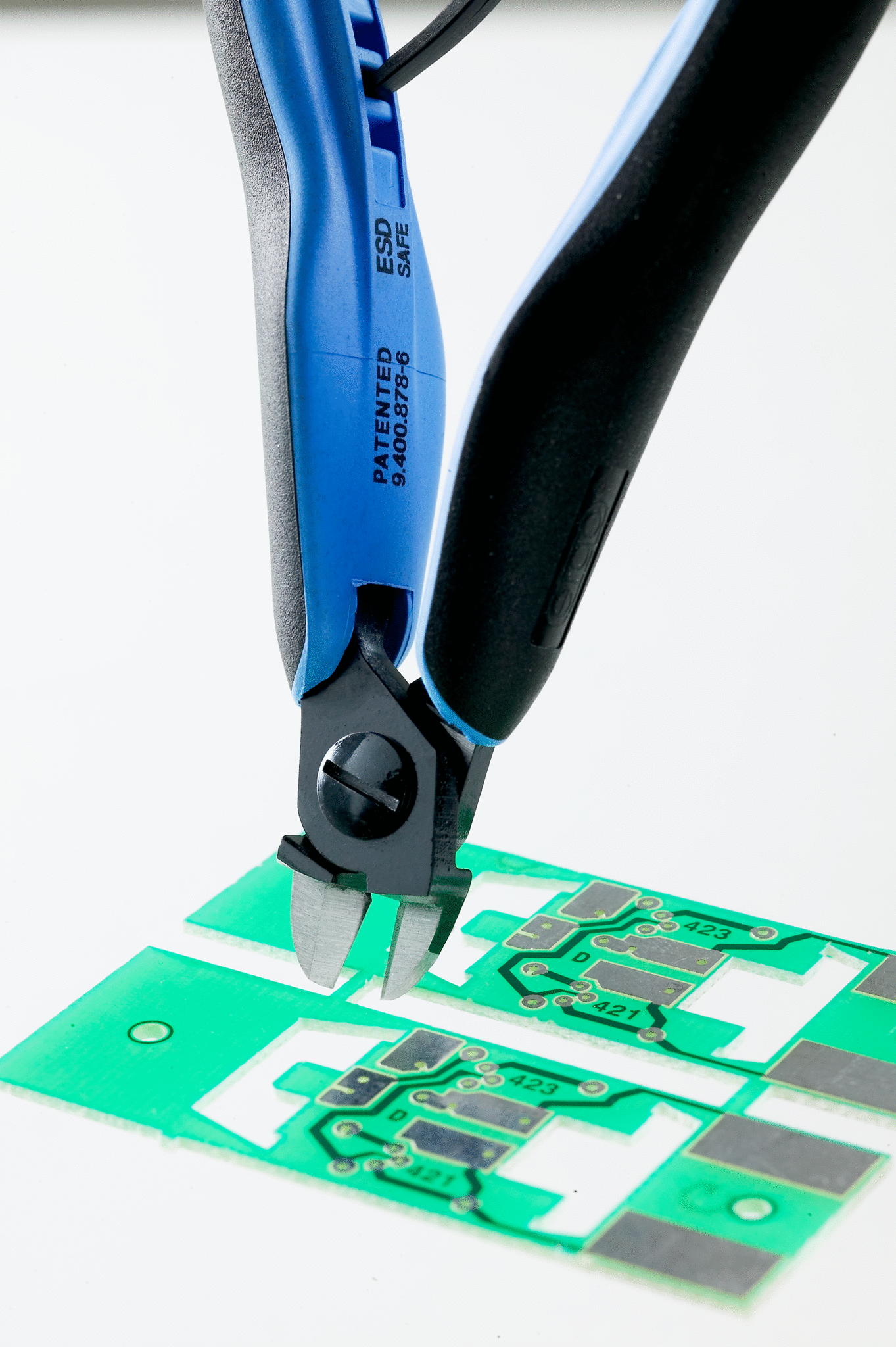

ESD safe handles in two-component synthetic material
Bio spring limits the tension throughout the working cycle of the tool & can be adjusted to 3 different positions or removed

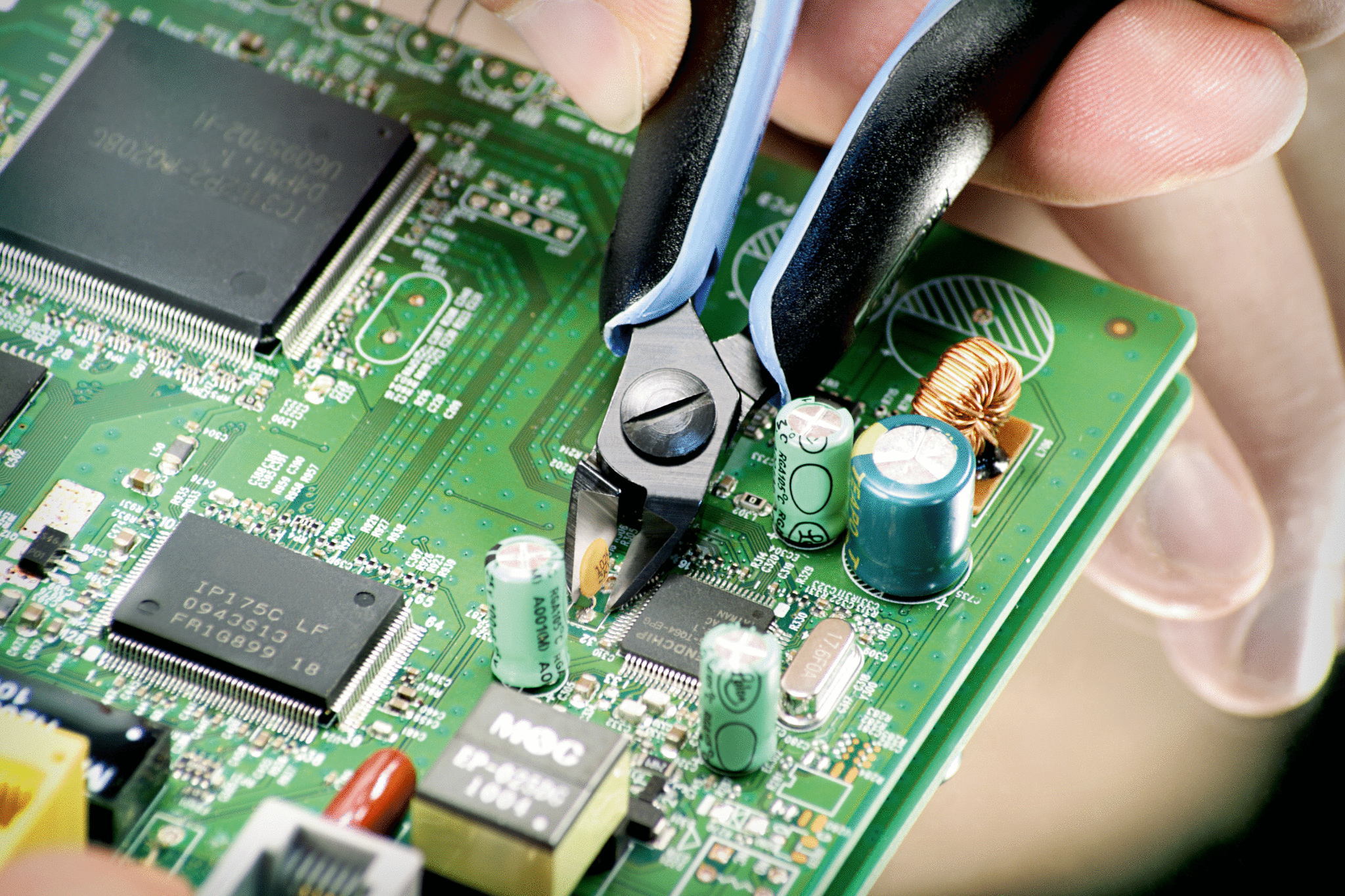

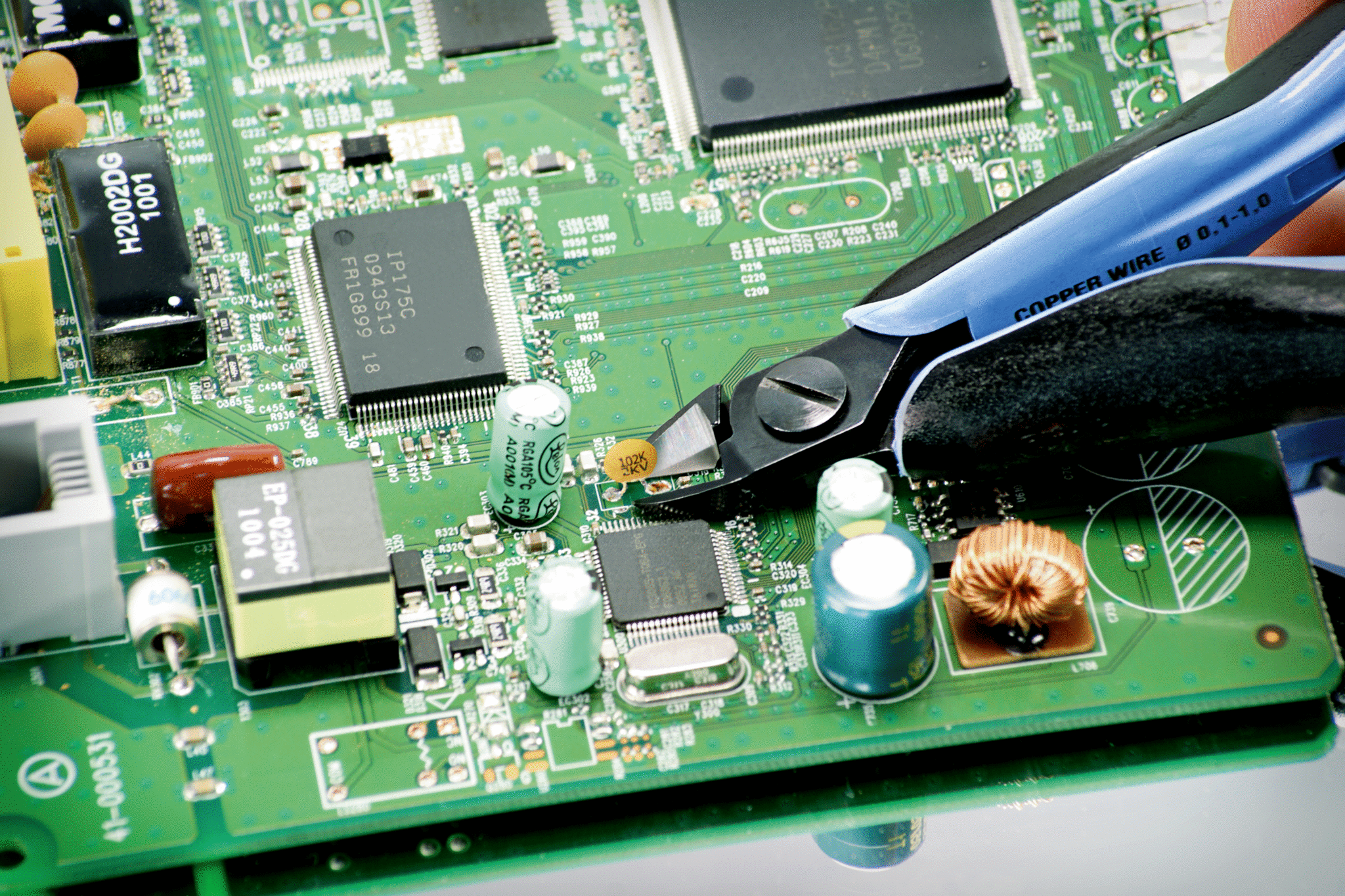

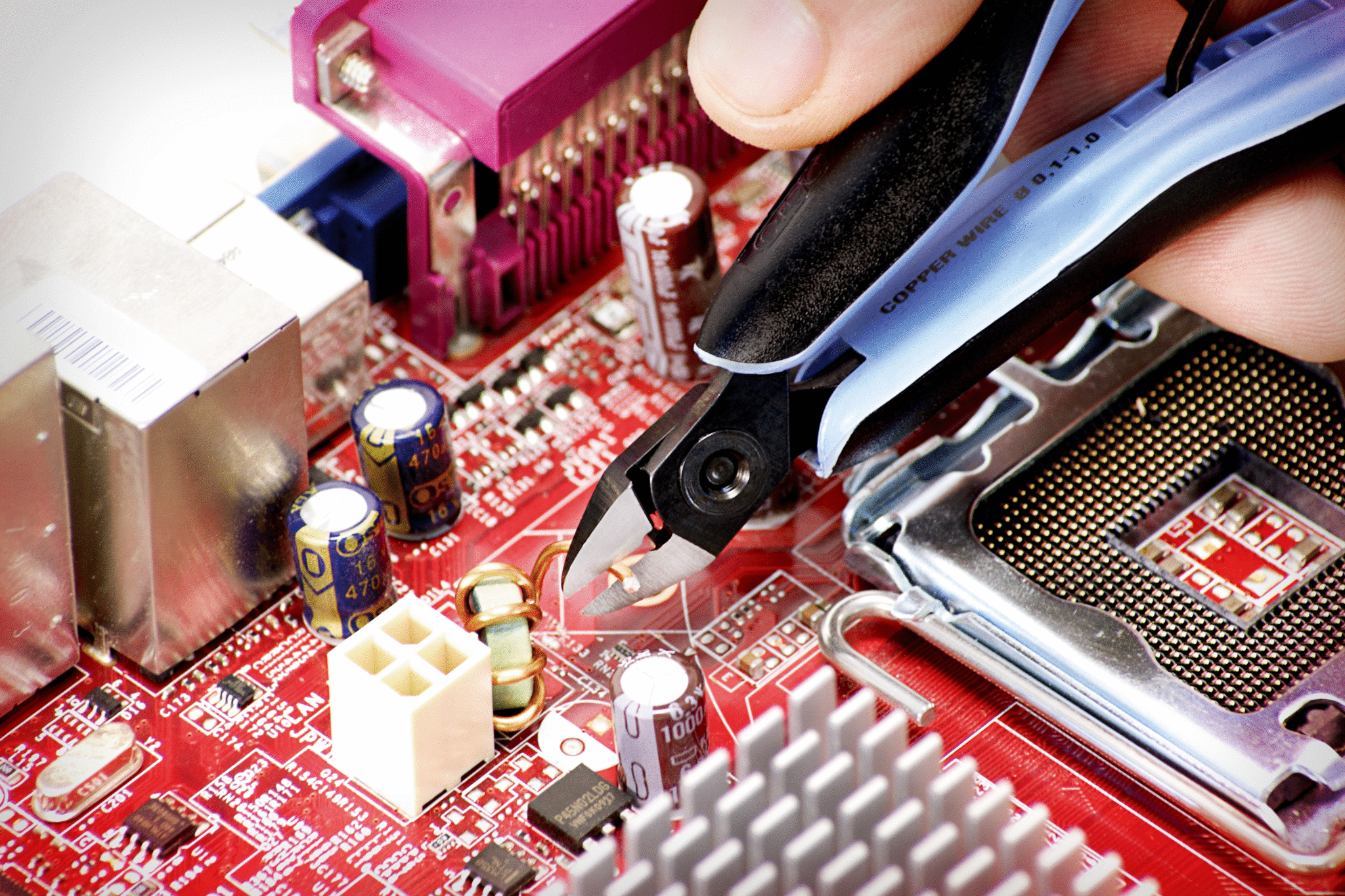

Ideal for wire harness work & standard printed circuit board assembly

Documents

Manuals

Certificates

Add to Wish List Contact Us Customize

Technical Details

Grouped product items
Product	Head Type	Head Size	Bevel / Cut Result	Cutting Capacity (mm)	Cutting Capacity (in)	Cutting capacity hard wire	Cutting capacity hard wire	Length A	Lenght (in)	Head Height (mm)	Head Height (in)	Head Width (mm)	Head Width (in)	Head Thickness (mm)	Head Thickness (in)	Tip Width (mm)	Tip Width (in)	Weight, g	Resistivity
ERGO™ Micro-Bevel® Precision Cut Diagonal Cutter with Oval Head 0.2-1 mm RX 8130	Oval	XS	Micro-Bevel ®	0.2-1.0 mm	0.00 - 0.04 in			133.5 mm	5.25 in	8.5 mm	0.33 in	8 mm	0.31 in	5 mm	0.2 inch	0.8 mm	0.03 in	68 g	Dissipative
ERGO™ Flush Precision Cut Diagonal Cutter with Oval Head 0.1-1 mm RX 8131	Oval	XS	Flush	0.1-1.0 mm	0.00 - 0.04 in			133.5 mm	5.25 in	8.5 mm	0.33 in	8 mm	0.31 in	5 mm	0.2 inch	0.8 mm	0.03 in	68 g	Dissipative
ERGO™ Ultra-Flush® Precision Cut Diagonal Cutter with Oval Head 0.1-0.8 mm RX 8132	Oval	XS	Ultra-Flush ®	0.1-0.8 mm	0.00-0.03 in			133.5 mm	5.25 in	8.5 mm	0.33 in	8 mm	0.31 in	5 mm	0.2 inch	0.8 mm	0.03 in	68 g	Dissipative
ERGO™ Micro-Bevel® Precision Cut Diagonal Cutter with Oval Head 0.2-1.25 mm RX 8140	Oval	S	Micro-Bevel ®	0.2-1.25 mm	0.00-0.05 in	0.2-0.5 mm	0.01-0.02 in	135.5 mm	5.33 in	10.5 mm	0.41 in	10 mm	0.39 in	6 mm	0.24 inch	0.8 mm	0.03 in	70 g	Dissipative
ERGO™ Flush Precision Cut Diagonal Cutter with Oval Head 0.1-1.25 mm RX 8141	Oval	S	Flush	0.1-1.25 mm	0.00-0.05 in	0.2-0.5 mm	0.01-0.02 in	135.5 mm	5.33 in	10.5 mm	0.41 in	10 mm	0.39 in	6 mm	0.24 inch	0.8 mm	0.03 in	70 g	Dissipative
ERGO™ Ultra-Flush® Precision Cut Diagonal Cutter with Oval Head 0.1-1 mm RX 8142	Oval	S	Ultra-Flush ®	0.1-1.0 mm	0.00-0.04 in			135.5 mm	5.33 in	10.5 mm	0.41 in	10 mm	0.39 in	6 mm	0.24 inch	0.8 mm	0.03 in	70 g	Dissipative
ERGO™ Micro-Bevel® Precision Cut Diagonal Cutter with Oval Head 0.3-1.6 mm RX 8150	Oval	M	Micro-Bevel ®	0.3-1.6 mm	0.01-0.06 in	0.2-0.8 mm	0.01-0.03 in	138 mm	5.43 in	13 mm	0.51 in	12.5 mm	0.49 in	6 mm	0.24 inch	1.2 mm	0.05 in	73 g	Dissipative
ERGO™ Flush Precision Cut Diagonal Cutter with Oval Head 0.2-1.6 mm RX 8151	Oval	M	Flush	0.2-1.6 mm	0.00-0.06 in	0.2-0.8 mm	0.01-0.03 in	138 mm	5.43 in	13 mm	0.51 in	12.5 mm	0.49 in	6 mm	0.24 inch	1.2 mm	0.05 in	73 g	Dissipative
ERGO™ Ultra-Flush® Precision Cut Diagonal Cutter with Oval Head 0.2-1.25 mm RX 8152	Oval	M	Ultra-Flush ®	0.2-1.25 mm	0.00-0.05 in			138 mm	5.43 in	13 mm	0.51 in	12.5 mm	0.49 in	6 mm	0.24 inch	1.2 mm	0.05 in	73 g	Dissipative
Ergo™ Micro-Bevel® Precision Cut Diagonal Cutter with Oval Head 0.4-2 mm RX 8160	Oval	L	Micro-Bevel ®	0.4-2.0 mm	0.02 - 0.08 in	0.3-0.8 mm	0.01-0.03 in	147 mm	5.80 in	16 mm	0.63 in	16 mm	0.63 in	8 mm	0.31 inch	1.6 mm	0.06 in	97 g	Dissipative
ERGO™ Flush Precision Cut Diagonal Cutter with Oval Head 0.3-2 mm RX 8161	Oval	L	Flush	0.3-2.0 mm	0.01 - 0.08 in	0.3-0.8 mm	0.01-0.03 in	147 mm	5.80 in	16 mm	0.63 in	16 mm	0.63 in	8 mm	0.31 inch	1.6 mm	0.06 in	97 g	Dissipative
ERGO™ Ultra-Flush® Precision Cut Diagonal Cutter with Oval Head 0.3-1.6 mm RX 8162	Oval	L	Ultra-Flush ®	0.3-1.6 mm	0.01 - 0.06 in			147 mm	5.80 in	16 mm	0.63 in	16 mm	0.63 in	8 mm	0.31 inch	1.6 mm	0.06 in	97 g	Dissipative
