ERGO™ Precision Micro Tip Cutters 141 mm

SKU
RX 8234
Product Details
  • Precision micro tip cutters developed according to the scientific ERGO™ process
  • ESD safe ERGO™ handles with two-component combination, thermoplastic surface for comfortable grip, on tough polypropylene core for rigidity
  • Flush cut
  • Cutting capacity: 0.05 mm to 0.4 mm Cu
  • High-performance alloyed steel
  • Burnished finish
  • Numerically controlled machine grinding guarantees edge angle accuracy & contact, increases the tool's reliability & consistency
  • Precision induction-hardened edges 63-65 HRC
  • Screw joint minimises friction & maximises alignment of cutting edges
  • Bio spring limits the tension throughout the working cycle of the tool & can be adjusted to 3 different positions or removed

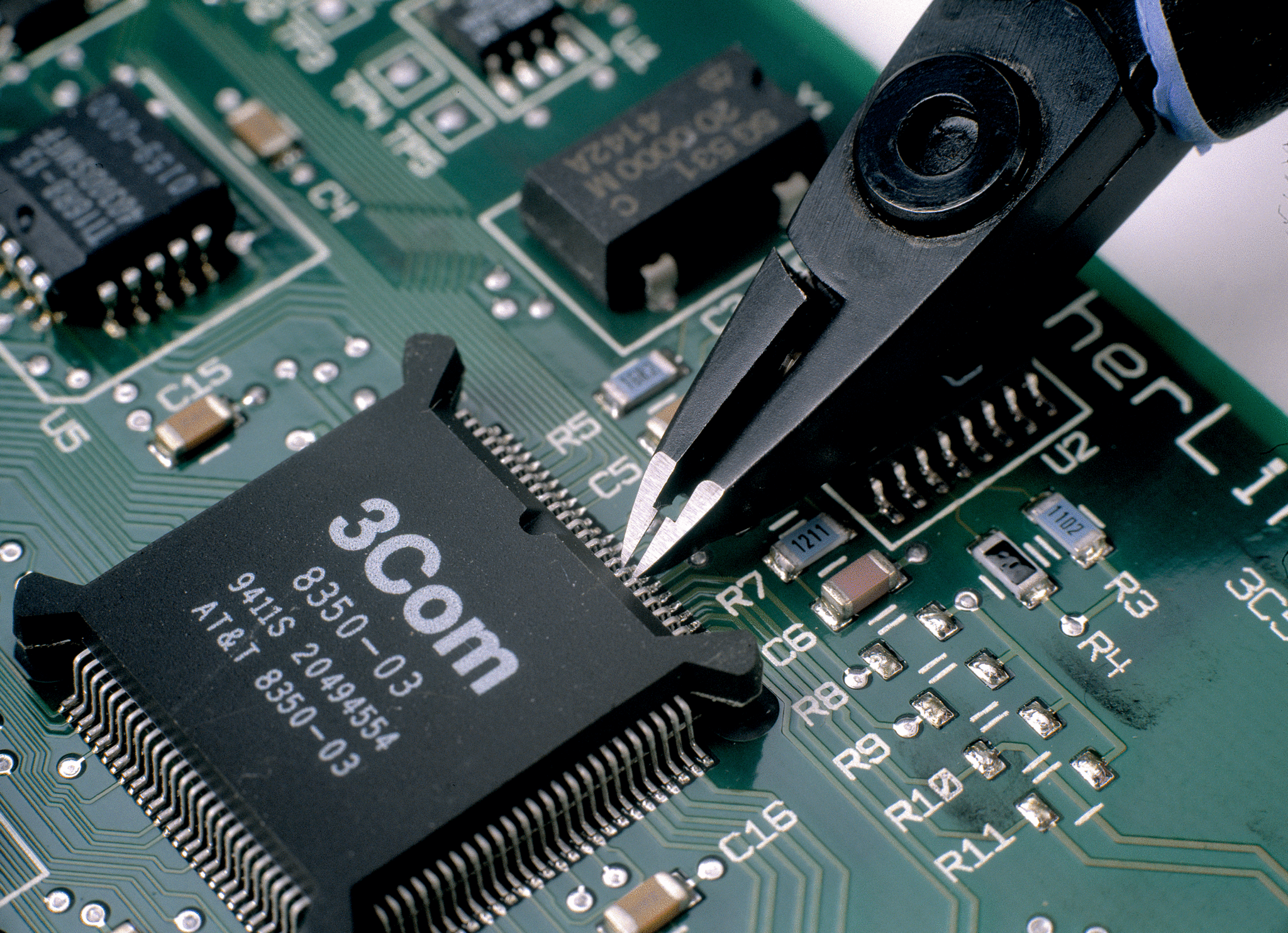

  • Ideal rework & close fine pitch applications
Documents
Technical Details
ESD Safe Rx8233lin Flush
Grouped product items
Product Buy online
ERGO™ Flush Precision Cut Micro Tip Cutter 141 mm RX8234A Micro Tip 10° XS Flush 0.05-0.4 mm 0.002-0.018 in 141 mm 4.50 in 14.2 mm 0.56 in 10.6 mm 0.41 in 7 mm 0.27 inch 3.2 mm 0.12 in 62 g Dissipative
